India's premier manufacturer and supplier of high-performance PVC Cones — essential accessories for wall formwork and heavy-duty concrete construction, engineered for precise structural integrity and clean concrete finishing.
Get Quote / Contact Us →

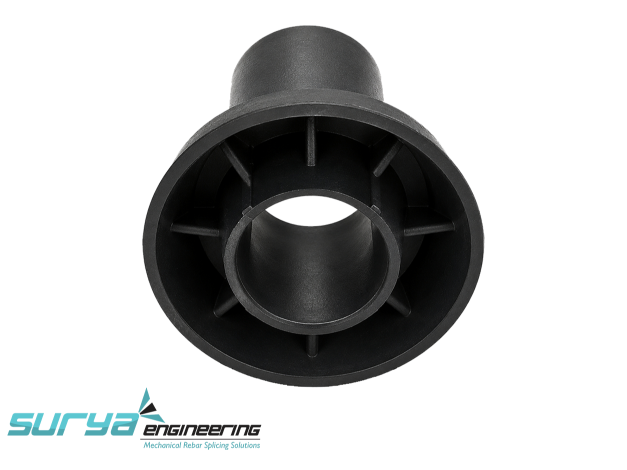

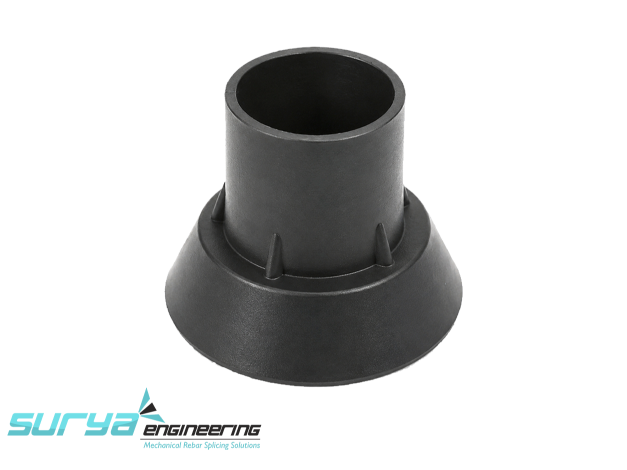

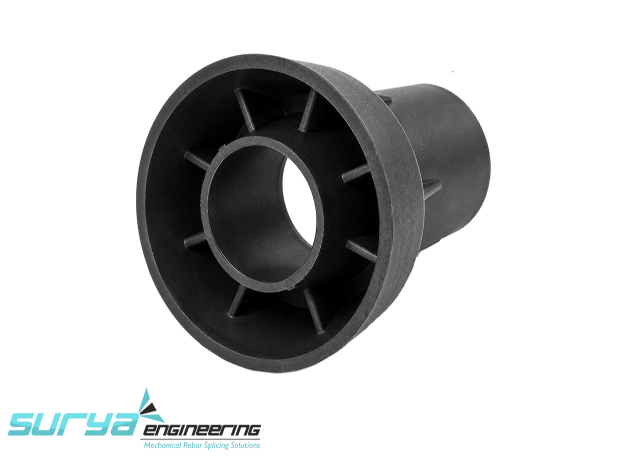

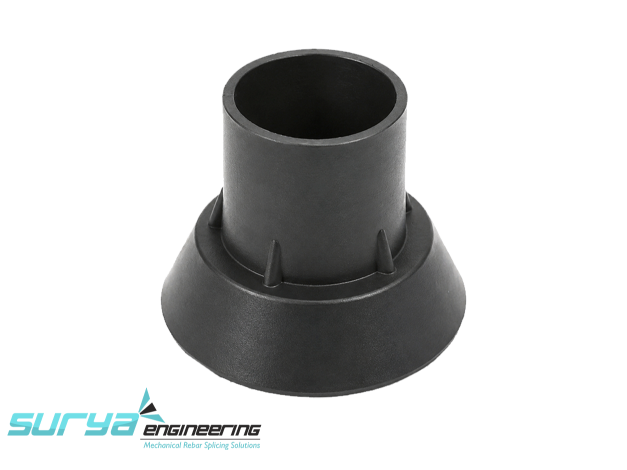

A PVC Cone is an engineered, tapered plastic accessory designed to work in tandem with PVC sleeves and tie rods during wall formwork assembly. It acts as a sacrificial or reusable sealing cap placed at both ends of the tie rod assembly. Because it is manufactured from high-grade, impact-resistant PVC, it maintains its structural integrity under the extreme pressure of wet concrete.
Its distinct tapered shape ensures it can be cleanly removed once the wall cures, providing an aesthetically pleasing recess for subsequent mortar patching. By utilizing high-density, impact-resistant Polyvinyl Chloride (PVC), Surya Engineering provides a durable solution that protects expensive tie rod assemblies from hydrostatic pressure and concrete slurry.
During the pouring of heavy concrete walls, the hydrostatic pressure is immense. To prevent formwork from bursting, steel tie rods are passed through the wall to lock opposite shuttering panels together. A PVC Cone is utilized to protect these expensive tie rods from highly fluid concrete slurry, which would otherwise cement them into the wall.
Furthermore, it acts as an exact internal spacer stop against the shuttering face, ensuring the concrete wall cures to its exact planned thickness. By creating a tight, pressurized seal against the plywood formwork, these cones prevent cement paste bleeding, which is the primary cause of honeycombing and structural weak spots.
| Parameter | Specification |
|---|---|
| Product Name | Heavy-Duty PVC Cone (Shuttering Accessory) |
| Material Composition | High-Density Virgin PVC |
| Design | Tapered for Easy Extraction |
| Available Sizes | 20mm, 25mm, 32mm, 36mm (Custom sizes available) |
| Manufacturing Process | Precision Injection Molding |
| Governing Code | Compliant with IS 14687:1999 |
| Load Bearing | Withstands high-torque wing-nut fastening |

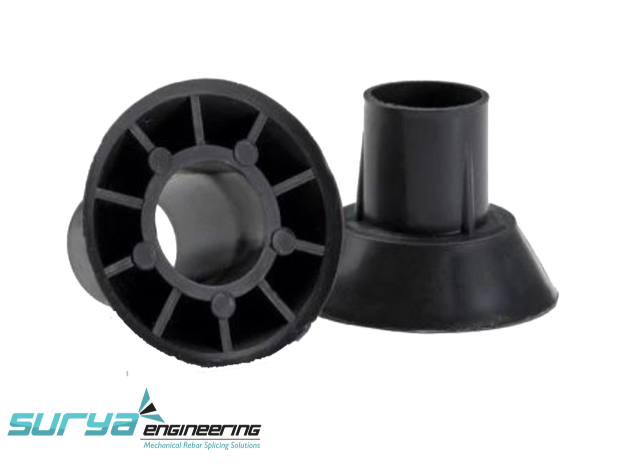

We offer a comprehensive range of PVC Cones categorized by material properties, sizing requirements, and specific structural applications. Our classification includes options ranging from standard virgin PVC to heavy-duty, reusable models, available in sizes from 20mm to 36mm. These cones are highly adaptable, serving diverse roles in wall, column, and retaining wall formwork.
| Industry | Application |
|---|---|
| Residential | Apartments, Villas, Residential towers, Housing projects |
| Commercial | Shopping malls, Office buildings, Hotels, Hospitals, Educational institutions |
| Industrial | Factories, Warehouses, Manufacturing plants, Industrial sheds |
| Infrastructure | Metro rail projects, Railway structures, Bridges, Dams, Tunnels |
| Water/Marine | Water treatment plants, Sewage treatment plants, Retaining walls |
Proper installation of PVC Cones is critical for achieving precise wall thickness, a clean concrete finish, and easy component extraction after curing.
At Surya Engineering, our formwork accessories adhere to strict industry guidelines. Our cones align with IS 14687:1999 (Guidelines for Falsework for Concrete Structures), ensuring all tie and sleeve systems withstand lateral concrete pressures without deforming, slipping, or causing grout leakage.
The primary advantage of our PVC Cones is their ability to deliver accurate wall thickness and a smooth concrete finish while significantly reducing labor costs. Because they are manufactured using durable, high-strength PVC, they resist corrosion and are inherently weather-resistant, making them ideal for India's humid and variable climatic conditions.
Their reusable nature makes them a highly cost-effective solution, as they maintain their shape and strength across multiple pouring cycles, thereby reducing the need for constant replacement and minimizing overall project material expenses.
Surya Engineering is a trusted manufacturer based in Mumbai, known for supplying precision-moulded construction accessories across India. We combine bulk production capability with strict quality control, ensuring every cone meets uniform dimensional standards.
Whether you are an infrastructure contractor, an EPC firm, or a real estate developer, our reliable supply network ensures you have the high-durability formwork components necessary to keep your project moving forward without delays.
Surya Engineering provides fast delivery and logistics support across all key industrial and municipal development regions in India. Our widespread shipping and supply networks ensure timely delivery of wholesale orders directly to your construction sites.
Virgin PVC · Precision Injection Moulded · IS 14687:1999 Compliant · Multi-Cycle Reusable · Custom Sizes Available · PAN India Delivery
