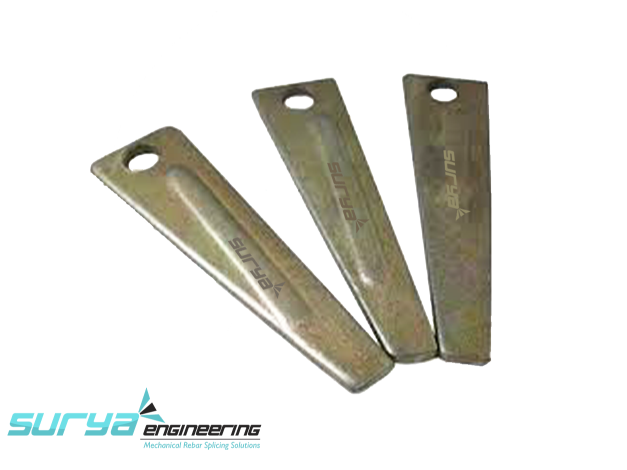

Precision-engineered high-tensile steel locking components essential for securing aluminum formwork panels in high-rise construction — providing maximum clamping force, geometric consistency, and flawless concrete finishes while significantly maximizing project profitability across India.
Request Bulk Quote →

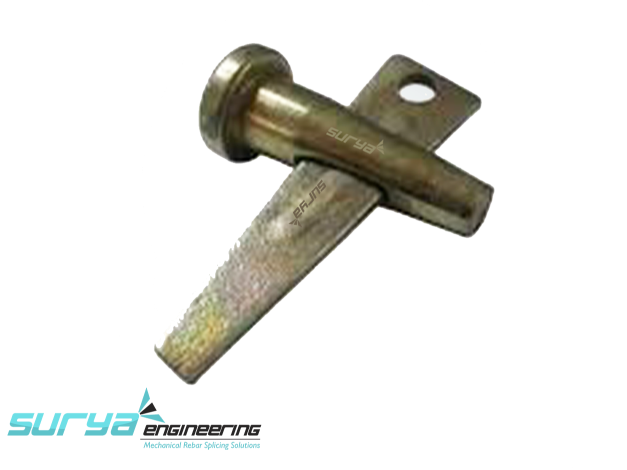

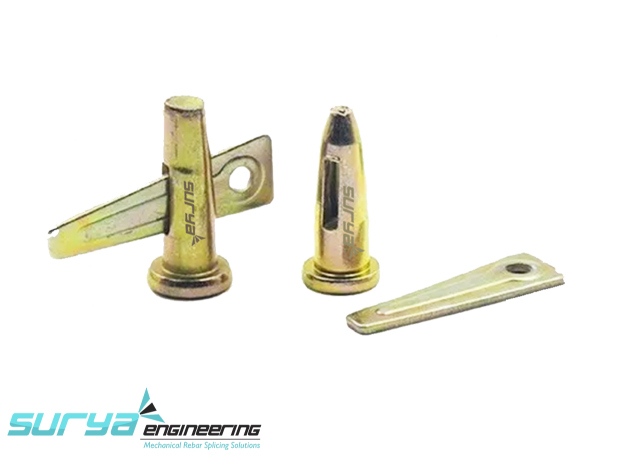

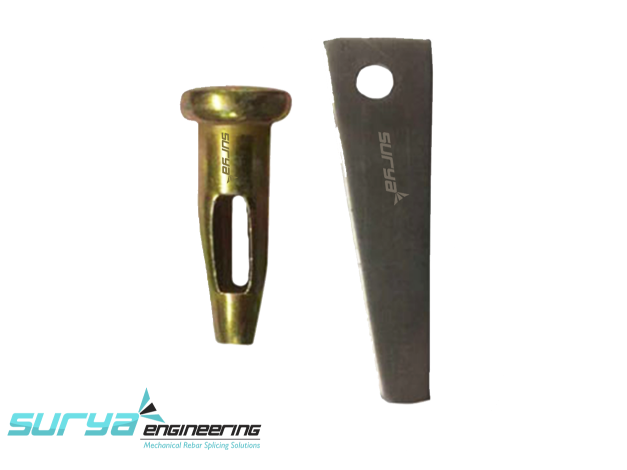

Mivan Wedges are critical steel components featuring a tapered design that drives into Mivan Stub Pins, locking adjacent formwork panels together with immense clamping force. As the primary locking mechanism of aluminum formwork systems, they transform individual panels into a rigid, monolithic structure. Manufactured from high-grade, heat-treated steel, these durable wedges withstand repetitive hammer strikes without deforming.
Their precise geometry prevents panel movement and joint leakage, ensuring dimensional accuracy for shear walls, columns, and slabs in high-rise construction. By eliminating expensive post-pour remedial work and shortening floor cycles, Surya Engineering's wedges significantly maximize project profitability and structural integrity.
The Mivan formwork system delivers high-speed, fair-faced concrete, but poor-quality wedges can loosen under vibration, causing gaps and bulging. Our precision-engineered Mivan Wedges solve this by providing uniform clamping force, making the assembly a single, immovable unit.
Designed for heavy-duty reusability across hundreds of cycles, these watertight fasteners prevent panel shifting, speed up de-shuttering, and eliminate expensive surface corrections, directly boosting project profitability. By ensuring a tight connection between formwork panels, they eliminate concrete leakage and finning, resulting in a cleaner concrete finish that lowers the cost of surface repairs.
| Parameter | Specification |
|---|---|
| Product Name | Mivan Locking Wedge |
| Material | High-Tensile Carbon Steel |
| Manufacturing Process | Forged / Heat-Treated |
| Surface Finish | Zinc-Plated / Black Finish (Corrosion Resistant) |

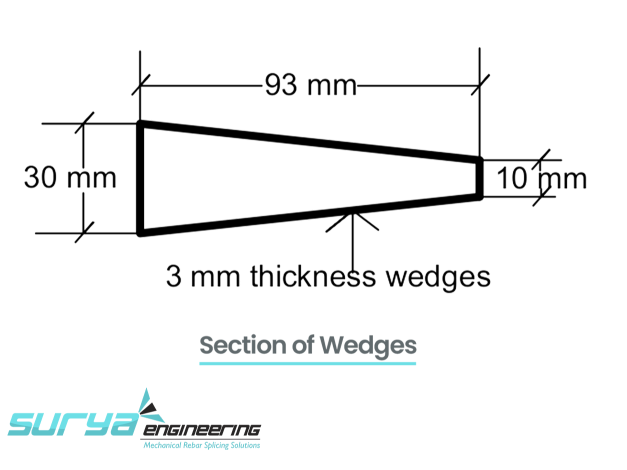

| Design | Tapered for maximum clamping force |
| Compatibility | All standard Mivan Stub Pins & Formwork Panels |
| Strength | High shear and impact resistance |
| Reusability | Suitable for intensive, multi-cycle use (100+ cycles) |
| Installation Type | Manual hammer-driven |
We manufacture various configurations of wedges to accommodate different shuttering requirements, ensuring every joint in your formwork assembly is secured effectively.
Mivan Wedges are used wherever aluminum formwork technology is implemented to maintain the rigid alignment of panels across diverse construction sectors.
| Industry | Application |
|---|---|
| High-Rise Residential | Locking wall, slab, and column panels |
| Mass Housing Projects | Rapid cycle casting of concrete units |
| Commercial Complexes | Ensuring geometric precision in large structural walls |
| Infrastructure | Bridge piers, tunnels, and retaining walls |
| Modular Construction | Securing pre-engineered formwork assemblies |
| Precast Manufacturers | Panel-to-panel sealing and assembly |
| Industrial Buildings | Heavy-load formwork systems |
| Smart City Projects | Public infrastructure and structural elements |
In high-rise construction, the "time-to-cycle" metric is the foundation of project ROI. Mivan Wedges enable a fast, consistent "wedge-and-pin" assembly method, allowing site teams to erect formwork with extreme speed. Because our wedges provide a secure, gap-free lock, they prevent the bowing or twisting of panels during the pour.
For developers, this means the finished concrete walls require minimal plastering and finishing work, as the system consistently produces "fair-faced" concrete. Using reliable, high-tensile wedges minimizes downtime, reduces labor costs, and keeps the construction schedule on track. For large-scale infrastructure developers and high-rise building contractors, high-quality mivan wedges represent a long-term asset that ensures geometric consistency, flawless alignment, and maximum project profitability.
Proper installation plays an important role in achieving maximum formwork performance and structural integrity.
At Surya Engineering, we subject our wedges to strict quality assurance to ensure they withstand the rigors of the construction site and deliver reliable performance.
Mivan Wedges offer the ideal combination of cost-efficiency and structural reliability. Their compact, durable design allows for rapid assembly, significantly reducing the labor hours required to shutter and de-shutter large-scale projects. By ensuring a tight connection between formwork panels, they eliminate concrete leakage and finning, resulting in a cleaner concrete finish that lowers the cost of surface repairs.
Their extreme durability and reusability make them a smart, long-term asset for contractors managing multiple projects across the country, delivering measurable return on investment through reduced maintenance, faster cycles, and superior finished concrete quality.
Surya Engineering manufactures high-performance Mivan Wedges designed for the rigorous, high-speed demands of modern construction. Our products are engineered using premium-grade steel, advanced forging techniques, and stringent quality control processes to ensure that your formwork system performs reliably every single time.
We serve large-scale infrastructure developers, high-rise building contractors, and mass-housing authorities across India with consistent product quality, technical support, and dependable supply. Our expertise in formwork accessories ensures your projects benefit from the latest manufacturing standards and field-proven performance metrics.
Surya Engineering provides fast delivery and logistics support across all key industrial and municipal development regions in India. Our nationwide supply network ensures timely delivery of wholesale orders directly to your construction sites or project storage facilities.
Standard & Heavy-Duty Variants · Zinc-Plated & Black Finish · Heat-Treated Steel · 100+ Casting Cycle Durability · PAN India Supply
