Safety access steps manufactured with a high-strength TMT bar or mild steel core fully encapsulated with virgin-grade PVC — engineered for manholes, water tanks, STP/ETP plants, utility chambers, and industrial structures with anti-slip grip and corrosion protection.
Request a Quote for PVC Coated Rungs →
Our PVC Coated Rungs are safety access steps manufactured with a high-strength TMT bar or mild steel core fully encapsulated with virgin-grade PVC. The steel core provides structural strength, while the PVC outer layer helps protect the rung against moisture, corrosion, chemicals, and demanding environmental conditions.
Also known as PVC encapsulated rungs, PVC foot steps, and PVC manhole steps, these rungs are designed for safe vertical access in manholes, water tanks, sewage treatment plants, utility chambers, inspection pits, and industrial structures.
With options ranging from 8 mm to 25 mm core diameters, PVC coated rungs can be selected according to the required load, dimensions, installation method, and application environment.
PVC coated rungs provide a combination of steel-core strength and PVC surface protection for vertical access applications where moisture, chemicals, and corrosion can affect conventional metal steps.
They are commonly used for:
The PVC surface can also provide an anti-slip grip and high visibility, making the rungs suitable for access points where workers need stable footing in wet or poorly lit environments.
| Specification | Details |
|---|---|
| Coating Material | Virgin Grade PVC |
| Core Material | TMT Bar / Mild Steel |
| Core Diameter | 8 mm, 10 mm, 12 mm, 16 mm, 20 mm and 25 mm |
| PVC Hardness | Shore A 60–80 |
| Core Tensile Strength | >415 N/mm² for TMT bar core |
| Surface Finish | Smooth or textured with anti-slip properties |
| Working Temperature | -10°C to 60°C |
| Chemical Resistance | High resistance to acids, alkalis and sewer gases |
| UV Resistance | Yes |
| Corrosion Resistance | Excellent |
| Typical Load Capacity | Up to 250 kg |

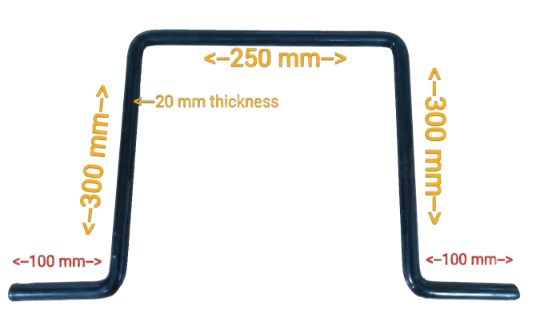

| Model | Dimensions (mm) | Core Diameter | Typical Application |
|---|---|---|---|
| Anchor Fast Foot Step | 170 × 165 × 25 | 8 or 10 mm | Concrete walls with pre-drilled anchors |
| Standard PVC Rung | 265 × 165 × 30 | 12 or 16 mm | Municipal manholes and utility chambers |
| Wide Utility Step | 370 × 163 × 25 | 20 or 25 mm | Deep storm drains and chemical storage |
| Square Heavy Platform | 300 × 300 × 25 | Custom heavy TMT | Heavy-duty industrial access |
The 16 mm PVC foot step is a commonly selected option where a balance between structural strength and product cost is required. Custom dimensions and core specifications can be considered for application-specific requirements.
PVC coated rungs combine a steel or TMT reinforcement core with a protective PVC outer layer. This construction provides the strength required for vertical access while protecting the core from direct exposure to moisture and corrosive environments.
The available construction options support different access requirements:
PVC coated rungs can support substantial working loads when the correct rung specification and installation method are used.
| Parameter | Value |
|---|---|
| Typical Safe Working Load | 200–250 kg |
| Maximum Standard Load Capacity | Up to 250 kg |
| TMT Core Tensile Strength | >415 N/mm² |
| Tensile Strength | >2.5 kN |
Actual load performance depends on the core diameter, rung dimensions, concrete condition, anchoring method, installation quality, and application requirements.
PVC coated rungs are designed for environments where conventional unprotected metal access steps can be exposed to moisture, chemicals, and corrosive conditions.
Key features include:
The combination of a reinforced core and PVC outer layer makes these rungs suitable for demanding access points in sewer, water-treatment, utility, and industrial environments.
PVC coated rungs are used in construction, municipal infrastructure, water treatment, and industrial access applications.
Our PVC coated rungs combine a TMT or mild steel core with virgin-grade PVC encapsulation for strength and protection.
Key manufacturing and quality checks include:
PVC coated rungs are designed to provide structural strength, corrosion protection, and secure footing in environments where conventional access steps may be exposed to moisture, chemicals, or sewer gases.
| Factor | PVC Coated Rungs | Galvanized Steel | Cast Iron | FRP |
|---|---|---|---|---|
| Corrosion Resistance | Excellent | Good | Moderate | Excellent |
| Electrical Insulation | Yes | No | No | Yes |
| Surface Protection | Full PVC encapsulation | Zinc coating | Metal surface | Composite material |
| Grip | Anti-slip PVC surface | Metal surface | Metal surface | Textured surface |
| Core Strength | TMT / Mild Steel | Steel | Cast Iron | Composite |
| Wet & Corrosive Environments | Highly suitable | Suitable | Less suitable | Highly suitable |
| Maintenance | Low | Periodic inspection | Periodic maintenance | Low |
Our PVC coated rungs are designed for reliable vertical access in manholes, tanks, treatment plants, utility chambers, and industrial structures.
Select the PVC coated rung according to the application, load requirement, core diameter, dimensions, and installation method.
PVC coated rungs can be manufactured with reference to applicable Indian standards for PVC foot steps and steel reinforcement.
Material and product specifications should be verified according to the required application and applicable standards.
Surya Engineering is a trusted manufacturer and supplier of PVC coated rungs and access products in India, focused on delivering products with reliable construction, secure footing, and corrosion protection for demanding environments.
Surya Engineering manufactures PVC Coated Rungs for manholes, water tanks, STP/ETP plants, utility chambers, and industrial access applications across India.
The rungs can be considered for requirements from:
For project-based requirements, buyers can share their required size, core diameter, quantity, and application with Surya Engineering to receive a suitable product recommendation and quotation.
Get in touch with us for PVC Coated Rungs manufactured in India for manholes, water tanks, STP/ETP plants, utility chambers, and industrial access applications. Share your required size, core diameter, quantity, and application to receive a suitable product recommendation and quotation.
TMT / MS Core · Virgin-Grade PVC · Anti-Slip · Corrosion Resistant · High Visibility · PAN India Supply
