Surya Engineering is a trusted manufacturer and supplier of premium quality Diamond Dowel Sleeves in India, designed for effective load transfer and controlled horizontal movement in concrete construction joints.
Our diamond dowel sleeve systems are widely used in industrial flooring, warehouse floors, logistics parks, manufacturing plants, airports, highways, pavements, distribution centers, and heavy-duty concrete slabs.
Manufactured using high-strength engineering-grade plastic materials, Surya Engineering Diamond Dowel Sleeves provide excellent durability, dimensional stability, and reliable performance in demanding industrial environments.
Request Bulk Quote →

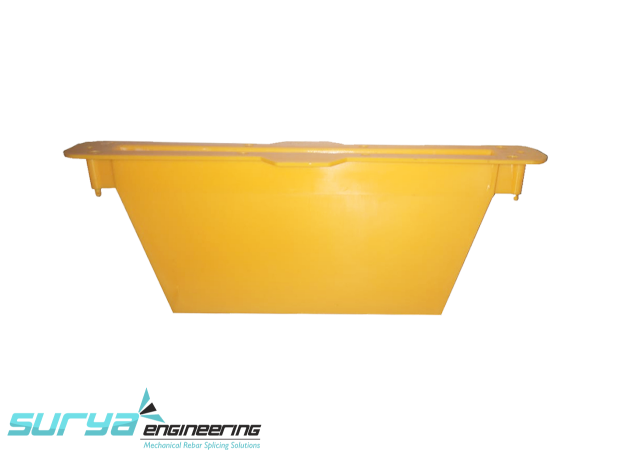

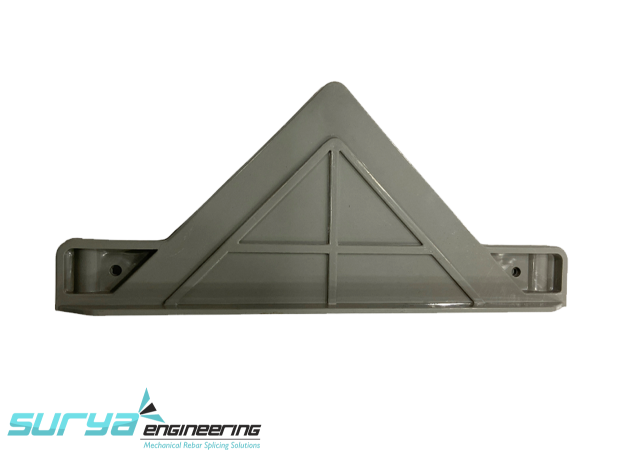

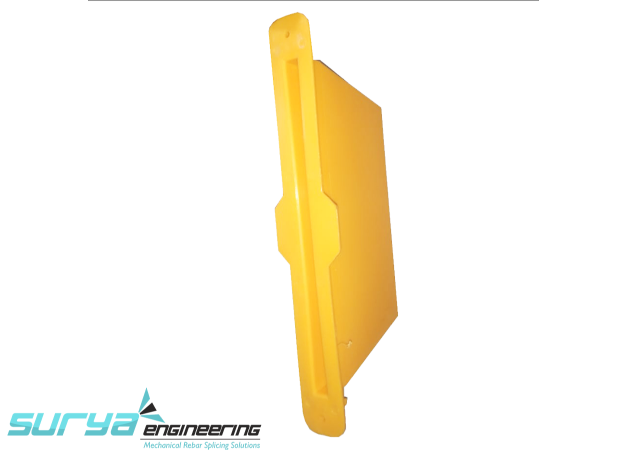

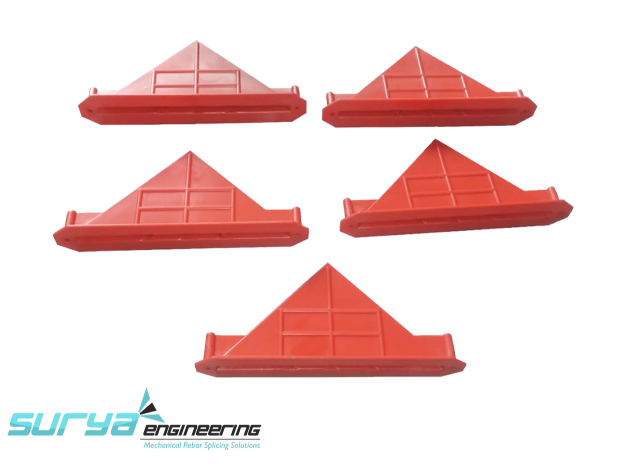

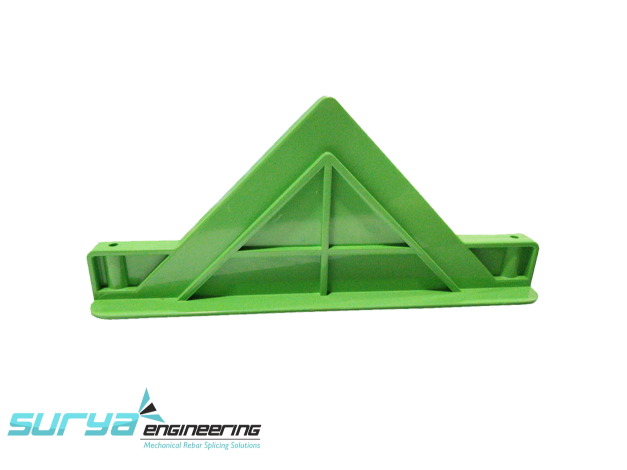

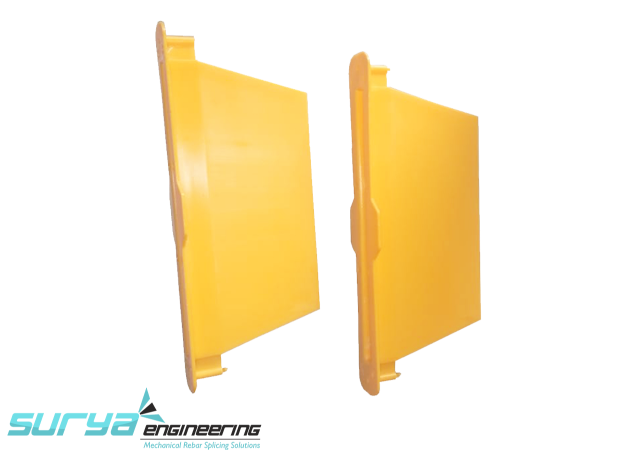

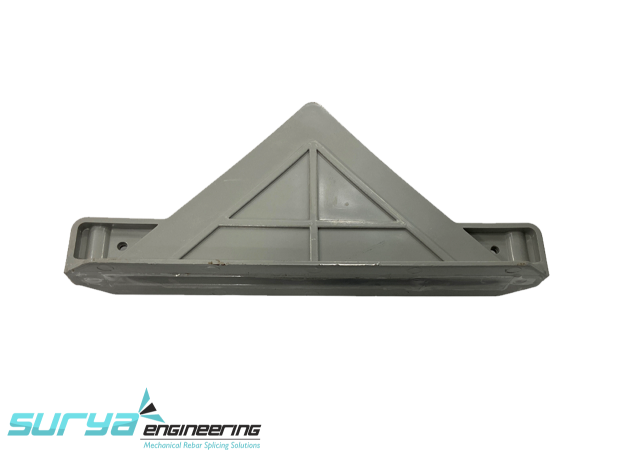

A Diamond Dowel Sleeve is a specially designed plastic sleeve used with a diamond-shaped dowel plate to create movement joints in concrete slabs. The sleeve holds one end of the diamond dowel plate while allowing controlled horizontal movement caused by temperature changes, shrinkage, and slab expansion.
Unlike traditional round dowel systems, a diamond dowel sleeve permits lateral movement in one direction while maintaining proper load transfer across construction joints. This helps reduce restraint stresses within the concrete and minimizes the risk of uncontrolled cracking.
Diamond Dowel Sleeve systems are commonly used in:
Concrete slabs naturally expand and contract due to temperature fluctuations, drying shrinkage, and structural movement. Without proper joint systems, these movements can lead to cracking, joint failure, and uneven floor surfaces. Diamond Dowel Sleeves help address these challenges by allowing controlled slab movement while maintaining structural integrity.
| Parameter | Specification |
|---|---|
| Product Name | Diamond Dowel Sleeve |
| Material | High-Strength Engineering Plastic |
| Sleeve Shape | Diamond Profile |
| Application | Concrete Construction Joints |
| Usage | Load Transfer System |
| Color | Black / Custom |
| Installation | Joint Assembly |
| Corrosion Resistance | Yes |
| Weather Resistance | Yes |
| Reusability | No |
| Concrete Compatibility | RCC & Industrial Flooring |
| Movement Allowance | Controlled Horizontal Movement |
At Surya Engineering, Diamond Dowel Sleeves are manufactured with strict dimensional accuracy to ensure proper dowel alignment and consistent joint performance.
Different construction projects may require different dowel and sleeve configurations depending on slab thickness and loading requirements.
Diamond Dowel Sleeves are widely used in projects where concrete movement joints require reliable load transfer performance. These systems are particularly valuable in large floor areas where joint performance directly impacts operational efficiency and maintenance costs.
| Industry | Application |
|---|---|
| Industrial Flooring | Construction joints |
| Warehouses | Floor movement joints |
| Logistics Parks | Heavy traffic slabs |
| Manufacturing Plants | Machine foundation floors |
| Airports | Pavement joints |
| Distribution Centers | Load transfer systems |
| Commercial Buildings | Concrete floor slabs |
| Infrastructure Projects | Expansion joints |
| Concrete Roads | Pavement construction |
Proper installation is essential for achieving effective load transfer and movement control. Proper installation helps maximize joint performance and long-term floor durability.
Diamond Dowel Sleeve systems undergo various quality inspections and performance evaluations to ensure durability, dimensional accuracy, and reliable joint functionality.
| Test Type | Objective |
|---|---|
| Dimensional Accuracy Test | Verifies sleeve dimensions to ensure proper compatibility with diamond dowel plates and construction joint systems |
| Load Transfer Performance Test | Evaluates the ability of the sleeve and dowel assembly to transfer loads across adjacent concrete slabs |
| Movement Simulation Test | Checks the ability of the sleeve system to accommodate concrete expansion and contraction |
| Impact Resistance Test | Measures durability against handling, transportation, and site installation conditions |
| Material Strength Test | Ensures the engineering plastic material maintains structural integrity under construction and service loads |
| Weather Resistance Test | Evaluates performance under varying environmental conditions including temperature fluctuations and moisture exposure |
| Fitment Inspection Test | Verifies accurate engagement between the sleeve and dowel plate for proper joint functionality |
Diamond Dowel Sleeves offer several benefits compared to conventional joint systems by combining controlled movement capability with reliable load transfer performance.
Surya Engineering is a trusted manufacturer and supplier of concrete joint systems, rebar accessories, construction products, and engineering solutions across India. Our Diamond Dowel Sleeve systems are designed to meet the requirements of modern industrial flooring, infrastructure, and commercial construction projects.
Surya Engineering supplies Diamond Dowel Sleeves across major construction and industrial regions of India with fast delivery and reliable technical support for all project requirements.
Surya Engineering manufactures and supplies high-performance Diamond Dowel Sleeves for industrial flooring, warehouses, logistics parks, airports, infrastructure projects, and commercial concrete floor construction across India.
Our Diamond Dowel Sleeve systems are engineered for accurate load transfer, controlled slab movement, superior durability, and long-term floor performance, making them an ideal solution for modern concrete joint construction applications.
